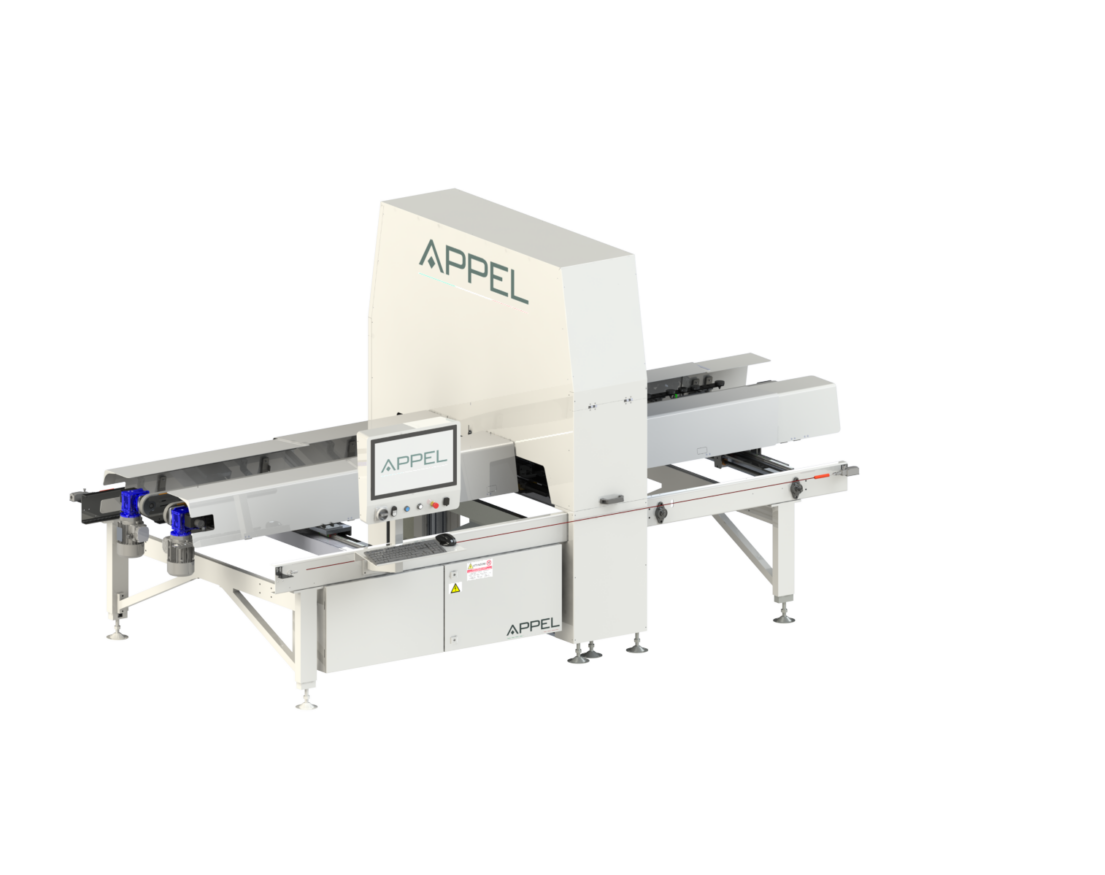

Tile Control TCE9 is a measuring instrument for ceramic tiles. Used for dimensional, diagonal, flatness and thickness control; it boasts great ease of use combined with wide flexibility.

Main features are:

• Automatic Size Change:: No manual adjustments and very fast complete procedure, approx. 30 sec;
• New 21.5″ operator panel with new graphic interface for ease of use by the operator;
• Provided with guards over the entire line to eliminate any reading defects from ambient light;
• Reduced overall dimensions: The Tile Control TCE-B consisting of a single axis on which all sensors are installed, reduces the footprint in the case of large formats;
• Fits into Industry 4.0
• Analysis of a wide range of sizes: from 100×100 up to 2000×4000 mm (widthxlength);
• Repeatable and accurate measurement of the diagonal, with graphical display on the operator panel of the longest diagonal. The diagonal is calculated from readings taken on the tile by 4 laser sensors;
• High ease of use and intuitive man-machine interface;
• Possibility to connect the machine to any line of choice, be it a new plant or existing plant, thanks to the output signals that can be freely configured from the operator panel;
• Possibility of feedback control for work adjustment of grinding machines;
• Touch screen operator panel equipped with extremely simple and intuitive design with user level management;
• Configurable alarm signals to the operator;
• Wide freedom to connect to the equipment and share data, via wired Ethernet or WiFi, or by downloading to USB devices. This wide freedom of connection, also allows the activation at the customer’s request of a remote assistance service.
• Possibility of connection to a supervision software that collects all its statistical data by displaying them in intuitive bar graphs. The supervision system also allows the creation of a history related to each production batch.
• Use of laser sensors that ensure greater reliability on all types/colors of material;
• Pneumatic tile centring device integrated on the conveyor structure. Motorised via 2 stepper motors controlled by the planar caliber with the possibility of changing speed directly from the operator panel. One size adjustment for belt and centring device.
• Chamfer inspection module consisting of three cameras and lights.
• chamfer integrity, measurement, and linearity checks.
• Resolution: 0.1 mm.
