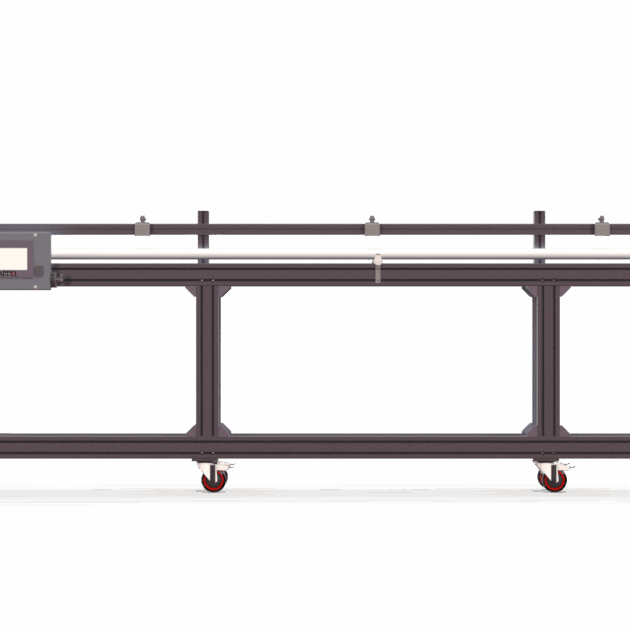

TILE CONTROL EDGE

TC-EDGE
Squaring defects control.

Defects detected by TC-EDGE:

– Bevel angle
– Edge angle
– Bevel measurement
– Chamfer defect

Category: Equipment Product ID: 20147

Description

CPU PLC standard

Power supply: 380 VAC – 1 W

HMI operator panel: 10″ touch screen

Data sharing: Modbus – Excel

Size change: No need

Sensors type: Laser

N° of sensors: 2

Sensor resolution: Z 0.012 – X 0.018

Working distance: 90 mm

Repeatability: +/- 0.1 mm

Field of view: 50 – 80

Maximum size: 1800x∞ mm width x lenght
